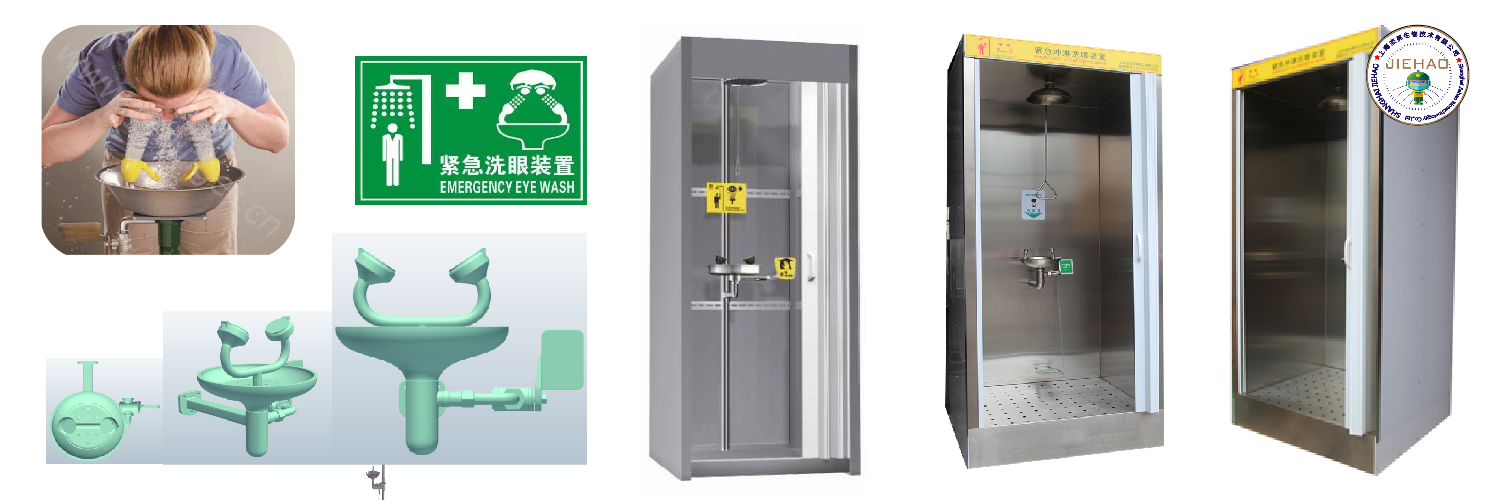

紧急洗眼房
紧急洗眼器和冲淋设备是在有毒有害危险作业环境下使用的应急救援设施。当现场作业者的眼睛或者身体接触有毒有害以及具有其他腐蚀性化学物质的时候，可以这些设备对眼睛和身体进行紧急冲洗或者冲淋，主要是避免化学物质对人体造成进一步伤害，但是这些设备只是对眼睛和身体进行初步的处理，不能代替医学治疗，情况严重的，必须尽快进行进一步的医学治疗。

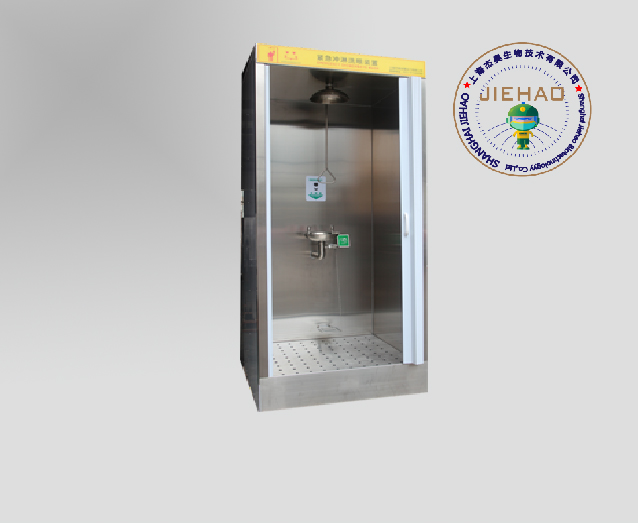

紧急洗眼房是配备喷淋系统和洗眼系统的紧急救护设备，并配有箱体和门，可整体直接安装在地面上使用。当化学品物质喷溅到工作人员服装或者身体上的时候，可以使用复合式洗眼器的喷淋系统进行冲洗，冲洗时间至少大于15分钟；当有害物质喷溅到工人眼部、面部、脖子或者手臂等部位时，可以使用复合式洗眼器的洗眼系统进行冲洗，冲洗时间至少大于15分钟。
技术参数
设计尺寸标准：900*1000*2200
使用环境温度：0~60℃。
使用温度：常温
设计压力：0.2-0.8MPa。
密封实验压力：0.4Mpa，保持15分钟时间，没有泄漏。
壳体试验压力：0.4MPa，保持15分钟时间，没有泄漏。
工作压力： 0.2~0.4MPa。
进水口尺寸：NPT DN32内螺纹
排水口尺寸：NPT DN32 内螺纹
进水口高度：1537mm
排水口高度：115mm
冲淋喷头高度：2224mm
洗眼喷头高度：1057mm
洗眼流量：≥12L/min
冲淋流量：≥114/min
使用环境：环境温度会出现低于0℃的地区，洗眼器前段供水管道内部水源必须做保温处理，保证在冬天使用时不结冰。
废水流向：现场必须有下水道或者废水收集池。
供水方式：必须连续供水。
适用场所：可以适用于各类化学品物质的场所使用。
洗眼器采用工业无缝钢管材质：工业级304不锈钢材质
Emergency eye wash room
Emergency eye wash and shower equipment are emergency rescue facilities used in toxic and hazardous working environments. When the eyes or body of on-site workers come into contact with toxic, harmful, or other corrosive chemicals, these devices can be used for emergency flushing or rinsing of the eyes and body, mainly to avoid further harm to the human body caused by chemicals. However, these devices only provide preliminary treatment for the eyes and body and cannot replace medical treatment. In serious cases, further medical treatment must be carried out as soon as possible.
The emergency eye wash room is an emergency rescue equipment equipped with a sprinkler system and an eye wash system, and is equipped with a box and door. It can be installed directly on the ground as a whole for use. When chemical substances splash onto the clothing or body of workers, the spray system of the composite eye wash can be used for flushing, with a flushing time of at least 15 minutes; When harmful substances splash onto workers' eyes, face, neck, or arms, the eye wash system of the composite eye wash can be used for flushing, with a flushing time of at least 15 minutes.
Technical parameter
Design size standard: 900 * 1000 * 2200
Operating environment temperature: 0-60 ℃.
Operating temperature: room temperature
Design pressure: 0.2-0.8MPa.
Sealing test pressure: 0.4Mpa, maintained for 15 minutes without any leakage.
Shell test pressure: 0.4MPa, maintained for 15 minutes without leakage.
Work pressure: 0.2~0.4MPa.
Inlet size: NPT DN32 internal thread
Drainage outlet size: NPT DN32 internal thread
Inlet height: 1537mm
Drainage outlet height: 115mm
Spray nozzle height: 2224mm
Eye wash nozzle height: 1057mm
Eye wash flow rate: ≥ 12L/min
Flushing flow rate: ≥ 114/min
Usage environment: In areas where the ambient temperature is below 0 ℃, the internal water source of the water supply pipeline in the front section of the eye wash must be insulated to ensure that it does not freeze during winter use.
Wastewater flow direction: There must be a sewer or wastewater collection tank on site.
Water supply method: Continuous water supply is required.
Applicable places: It can be used in places where various chemical substances are used.
The eyewash is made of industrial seamless steel pipe material: industrial grade 304 stainless steel material
