隔离器
隔离器是一种用于在受控环境中进行无菌操作的设备，广泛应用于医药、生物技术、食品加工、化妆品制造等行业。 我们的生物安全隔离器是实现这一目标的关键技术，提供无与伦比的安全性和效率在生物医药、食品加工和科研领域，实验室无菌操作至关重要。
工作原理：
隔离器通过创建一个与外界环境隔离的封闭空间，确保内部操作的无菌性。它通常使用高效过滤系统（如HEPA或ULPA过滤器）来过滤进入隔离器的空气，以去除微生物和微粒。
关键组件：
1. 过滤系统：用于过滤进入隔离器的空气，保证无菌环境。
2. 密封门：确保隔离器在开启和关闭时的密封性。
3. 手套端口：允许操作人员在不破坏无菌环境的情况下接触内部物品。
4. 灭菌系统：如汽化过氧化氢（VHP）系统，用于周期性地对隔离器内部进行灭菌。
5. 监控系统：实时监测和记录隔离器内部的环境参数，如温度、湿度、压力等。
6. 数据记录：记录操作过程和环境参数，以符合GMP等法规要求。
操作流程：
1. 准备阶段：对隔离器进行清洁和灭菌，准备操作环境。
2. 装载阶段：通过传递舱或手套端口将物品装入隔离器。
3. 操作阶段：操作人员通过手套端口或机械臂在无菌环境中进行操作。
4. 卸载阶段：完成操作后，将产品从隔离器中取出，进行后续处理或包装。
应用领域：
1. 无菌药品生产：用于无菌灌装、冻干、无菌连接等操作。
2. 生物技术：用于细胞培养、基因工程、生物制剂的生产等。
3. 食品加工：用于无菌包装，确保食品安全。
4. 化妆品制造：用于生产敏感或高活性的化妆品成分。
安全与合规性：
隔离器的设计和操作必须符合行业安全标准和法规要求，如GMP、FDA规定等，以确保产品质量和操作人员安全。
维护与清洁：
定期对隔离器进行清洁、灭菌和维护，以保持其性能和延长使用寿命。
隔离器是一种高效、可靠的无菌操作解决方案，它通过提供封闭、可控的工作环境，帮助企业实现高标准的产品质量和生产效率。
Short Description:

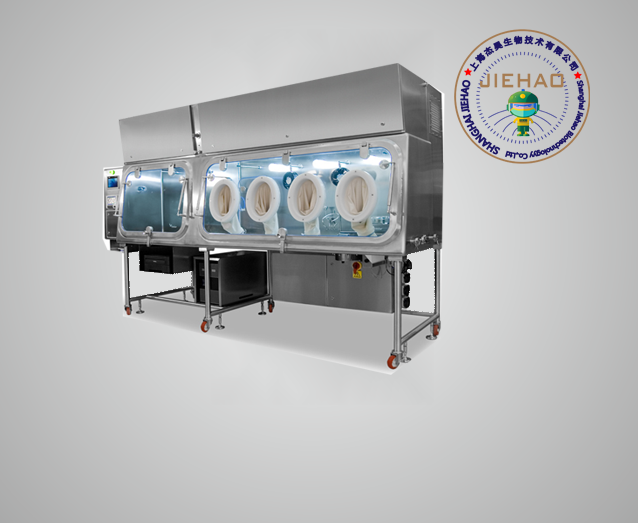

Aseptic Sterile Isolator: Utilizes a physical barrier to protect the critical operations of sterile drug manufacturing from external environmental contamination, ensuring product integrity and operator safety.
Product Features:
-
Intelligent Control System: Offers advanced automation for seamless operation and control.
-
Experimental Operation Area: Provides a dedicated space for conducting experiments or operations under sterile conditions.
-
VHP Sterilization: Utilizes Vaporized Hydrogen Peroxide for effective sterilization within the isolator.
-
Automatic Chamber Leak Detection Test: Ensures the integrity of the isolator by automatically testing for leaks.
-
Integrated Design: Combines multiple functions and systems into a single, cohesive unit for ease of use and maintenance.
-
Internal Bacteria Collector: Helps maintain sterility by collecting and removing contaminants within the isolator.
Compliance and Additional Features:
-
Designed to meet GMP (Good Manufacturing Practice), FDA (Food and Drug Administration), and USP/EP (United States Pharmacopeia/European Pharmacopeia) standards.
-
Equipped with an electrical record and electrical signature for traceability and compliance.
-
Features two interlocked inflatable seal doors to achieve near-zero leakage during production.
-
Capable of real-time monitoring of wind speed, pressure, temperature, relative humidity, and, with optional sensors, hydrogen peroxide concentration.
-
Supports real-time printing and storage of data for record-keeping and analysis.
-
Can be operated both automatically and manually for flexibility.
Technical Specifications:
-
Power Supply: AC380V 50HZo
-
Maximum Power: 2500 Wattso
-
Control System: NetSCADA system
-
Clean Class: GMP Class A dynamic
Application:
The Aseptic Isolator is ideal for applications where a high standard of sterility is required, reducing the need for a high-specification clean room and simplifying the process for personnel, thus lowering operational costs.
This equipment is a crucial asset in the pharmaceutical and biotechnology industries, providing a controlled, sterile environment that minimizes the risk of contamination, which is vital for the production of safe and effective drugs
